YubiKey MFA Setup & Troubleshooting Guide

Mideye supports YubiKey hardware tokens as a second authentication factor. When a user authenticates, they enter their password followed by a one-time password (OTP) generated by touching the YubiKey button. The 44-character modhex OTP is validated by the Mideye infrastructure.

---

YubiKey types and serial prefixes

Type	Serial format	OTP validation	Example
Mideye-provided	ubbc + 8-digit serial	Mideye token service	ubbc06434510
Commercial (third-party)	zmub + 7–8-digit serial	YubiCloud (Yubico)	zmub05761949

Prefix matters

The serial prefix determines the validation path. Using the wrong prefix causes authentication to fail. Always use ubbc for Mideye-provided YubiKeys and zmub for commercial ones.

How it works

When a user touches their YubiKey, it produces a 44-character modhex OTP:

cccccddbefrkdtteflufklvhtdljffhdkcierivligfr

The first 12 characters are the public identity. The remaining 32 characters are the encrypted OTP payload. The Mideye Server routes validation based on the serial prefix.

Modhex character set

YubiKey OTPs use 16 keyboard-layout-independent characters:

c b d e f g h i j k l n r t u v

---

Validation architecture

Mideye-provided YubiKeys (ubbc)

User → YubiKey OTP → Mideye Server → Mideye Switch → Token Gateway → Token Server

Token provisioning

Mideye-provided YubiKeys must be pre-registered in the Mideye token server. If you see TOKEN_NOT_FOUND, contact Mideye Support.

Commercial YubiKeys (zmub)

User → YubiKey OTP → Mideye Server → Mideye Switch → Token Gateway → Token Server → YubiCloud

Internet dependency

Commercial YubiKey validation requires outbound internet access to YubiCloud. Mideye cannot guarantee YubiCloud availability.

---

Provision a Mideye-provided YubiKey (ubbc)

Step 1 — Obtain the serial number

The 8-digit serial number is printed on the back of the YubiKey.

If not readable: insert the key, open a text editor, touch the button, and read the first 12 characters. All Mideye-provided YubiKeys start with ubbc.

Step 2 — Register the serial in the user repository

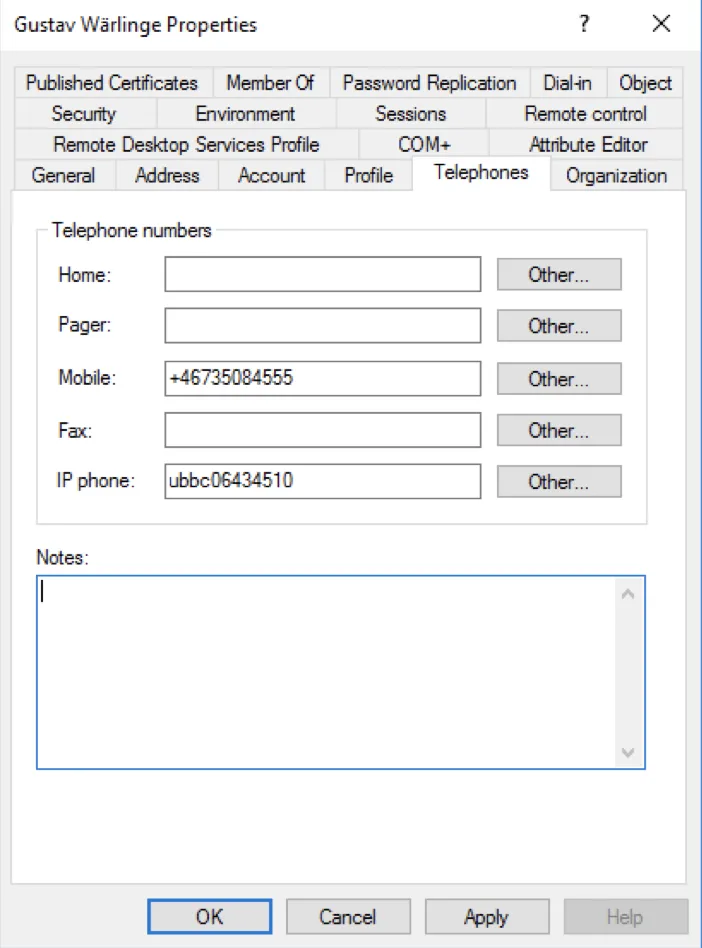

Add the serial (e.g., ubbc06434510) to the user’s directory entry.

Active Directory: The default attribute is ipPhone. This can be changed in the LDAP profile configuration under User Attributes.

Step 3 — Set authentication type to Token

The user’s authentication type must be set to 3 (Token).

Option A — Token serial in the mobile phone field: If the ubbc serial is in the mobile phone field, Mideye Server automatically assigns the Token type. Set the Token Number parameter to the mobile phone field.

Option B — Separate authentication type attribute:

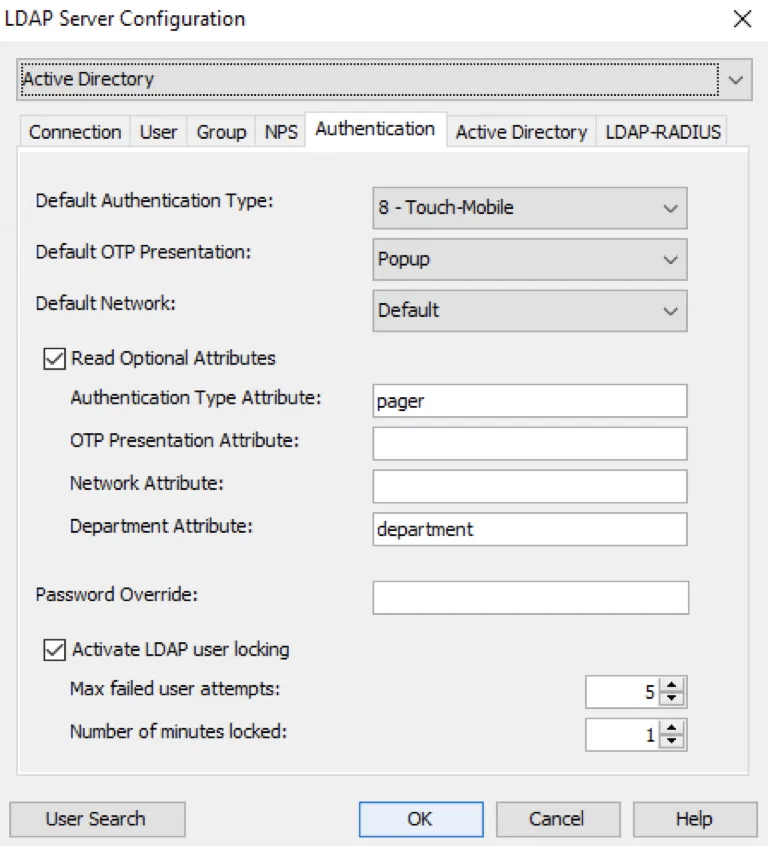

1. In the LDAP profile → Authentication tab, check Read Optional Attributes.
2. Specify an Authentication Type Attribute (default for AD: pager).

3. Set the user’s pager attribute to 3.

Tip

The attribute chosen for authentication type must be empty for all users and not used for any other purpose. See Authentication Types for what each number represents.

---

Provision a commercial YubiKey (zmub)

Prerequisites

• The YubiKey must be registered with YubiCloud. Factory keys from Yubico are pre-configured.
• Verify at demo.yubico.com. If it fails, upload at upload.yubico.com.

Custom keys

OTP prefix	Key type
cccc	Factory pre-configured (standard YubiCloud)
vvcc	Custom key (must be uploaded to YubiCloud)

Custom keys require the RADIUS client setting: Client Configuration → Allow YubiKeys with custom keys.

Step 1 — Obtain the serial number

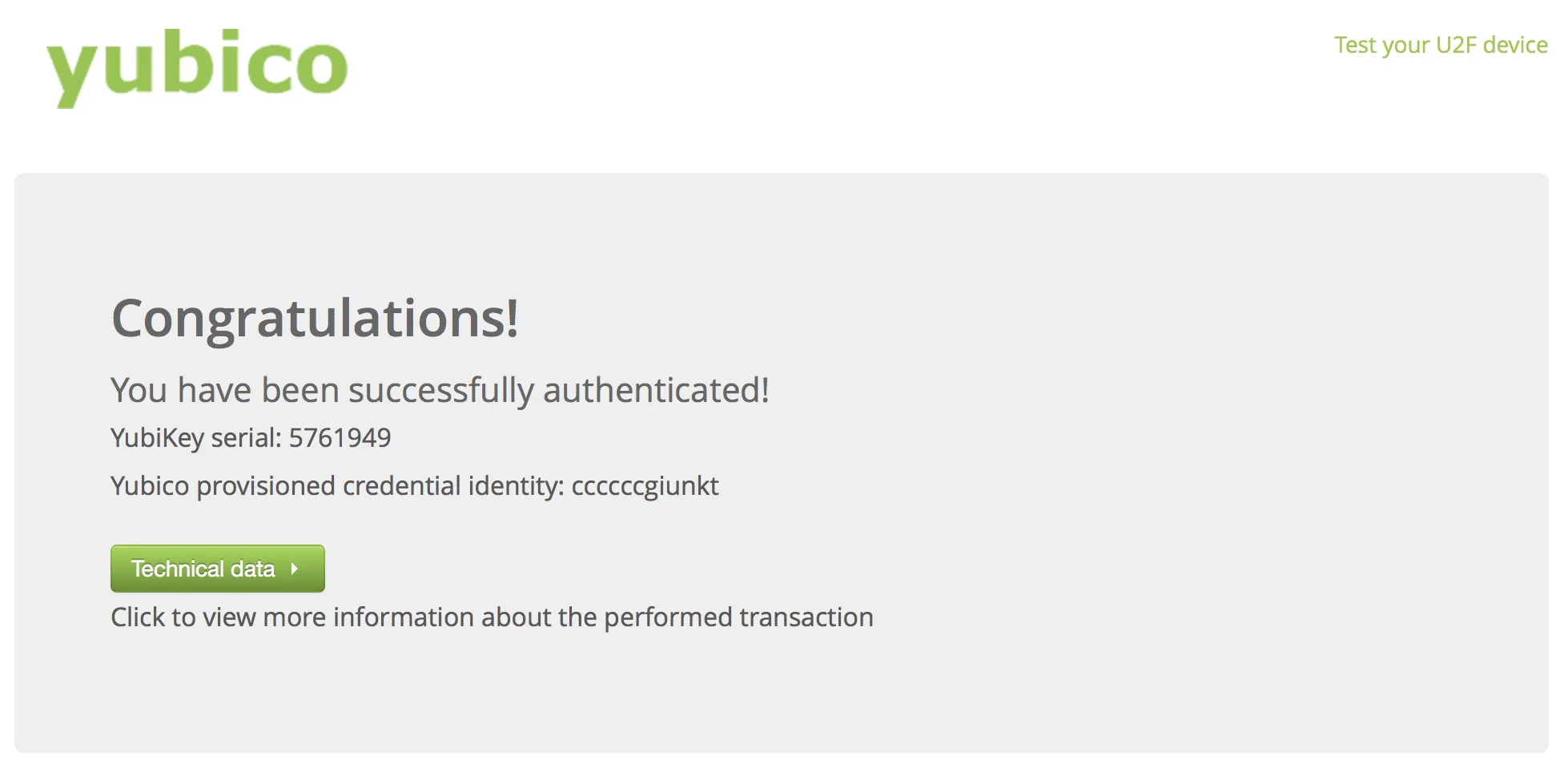

From demo.yubico.com/otp/verify, or:

1. Touch the YubiKey to generate an OTP.
2. Copy characters 5–12 (e.g., cccccckdnhjr…).
3. Convert with the Yubico ModHex Converter.

Step 2 — Register with zmub prefix

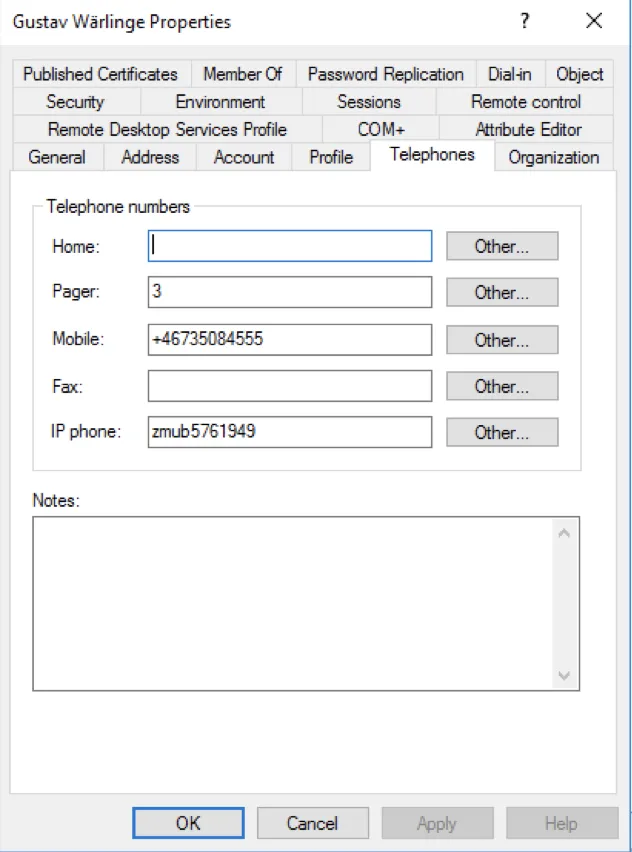

Add the serial as zmubXXXXXXXX in the user repository.

Step 3 — Set authentication type to Token

Same as for Mideye-provided YubiKeys — set the attribute to 3.

---

Troubleshooting

Symptom	Likely cause	Resolution
TOKEN_NOT_FOUND	Serial not registered	ubbc: contact Mideye Support. zmub: verify at demo.yubico.com
WRONG_OTP / BAD_OTP	Validation failed	Verify correct key, check for damage
LOCKED	Too many failures	Contact admin to unlock
TOKEN_OUT_OF_SYNC	Counter mismatch	Touch the key several times, retry
REPLAYED_OTP	Same OTP used twice	Generate a fresh OTP
Login times out	Network issue	Check server logs and Switch connectivity

Wrong prefix

• ubbc key registered as zmub → sent to YubiCloud which doesn’t have the secret → fails
• zmub key registered as ubbc → sent to Mideye token server which doesn’t have it → TOKEN_NOT_FOUND

---

Quick reference

Detail	Mideye-provided	Commercial
Serial prefix	ubbc	zmub
OTP length	44 characters (modhex)	44 characters (modhex)
Validation	Mideye token server	YubiCloud
Internet required	Depends on deployment	Yes
Auth type	3 (Token)	3 (Token)
AD attribute (serial)	ipPhone (default)	ipPhone (default)
AD attribute (auth type)	pager (default)	pager (default)

---
